Transformer Voltage Monitoring: How Utilities Prevent Failures Before They Happen

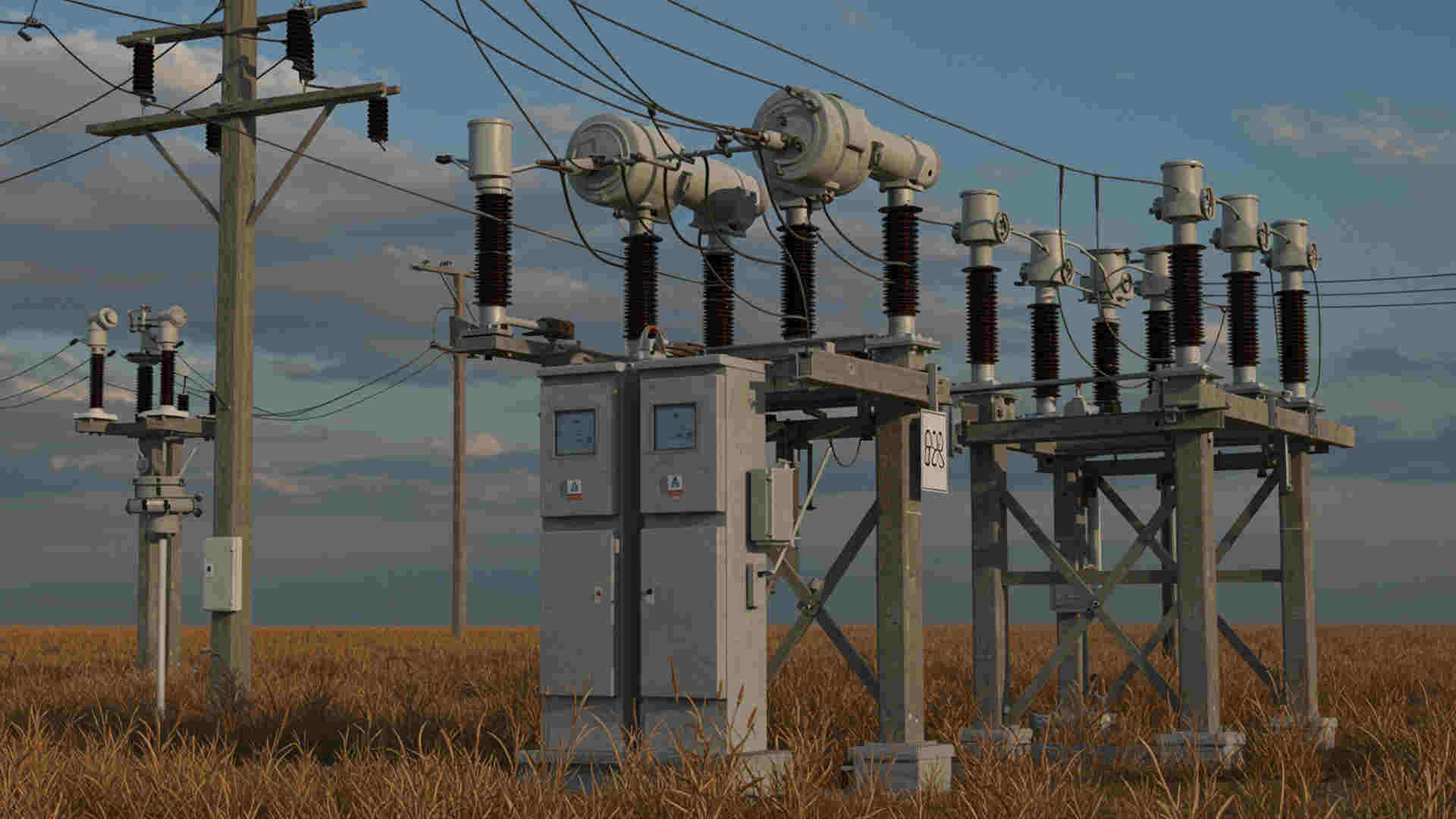

Transformer voltage monitoring is the ongoing measurement and assessment of voltage quality and other parameters across different phases of a distribution transformer. This is more than just treating voltage as a compliance-based metric. It provides a means of identifying trends, including imbalance, sags, swells, fluctuations, etc., to understand whether a transformer is operating within safety standards.


So why is this type of monitoring important for modern utilities? Because voltage stress is not simply a power-quality issue, it is a driver of transformer health, aging and reliability outcomes across the AMI network.

Why Does Transformer Monitoring Matter for Utility Performance?

Reliability & safety

Voltage deviations can increase winding temperatures, insulate stresses, energize thermal hotspots, cause fuse operations, etc. Early identification of under-voltages, over-voltages or imbalances allow utilities to better respond to outages, fires or safety incidents before they occur.

Capex deferral

Voltage monitoring allows utilities to make clear distinctions between transformers that appear less stressed and those that are consistently facing voltage-driven thermal stress.  As a result only those units that truly need attention, are re-phased, re-balanced and right-sized. This helps utilities to stretch their capital budgets and extend asset life.

Reduction of technical- and commercial-related losses

Events like voltage imbalances or prolonged periods of undervoltage can raise heating loss levels and decrease transformer efficiency. Transformer monitoring enables utilities to recognize bad pockets, verify the implemented action, and mitigate any energy losses that stem from low voltage quality.

Increased crew efficiency

With voltage monitoring, dispatch isn’t triggered by scattered complaints or manual checks.  Instead, crews prioritize transformers with the highest voltage-driven risk, improving response times and eliminating trial-and-error troubleshooting.

Regulator/stakeholder confidence

Voltage stability is expected by regulators. Continuous monitoring of voltage provides auditable, evidence-based criteria to support maintenance decisions, capex planning, and transformer change timelines.

Improved customer experience

Many consumer-reported issues such as dim lights, flickering appliances, slow motor starts are often rooted in voltage anomalies. When these issues are addressed proactively, utilities witness fewer complaints, less service interruptions and improved grid reliability.

The outcome of being proactive in understanding these continued patterns results in fewer complaints, fewer interruptions, and more reliable quality.

However, voltage conditions rarely exist in isolation. Their true impact is realized when these data are combined with loading, power factor and thermal stress. This is where intelligent utility platforms like Grid emerge as a comprehensive transformation monitoring system.

How Does Grid Interpret Transformer Voltage in Context?

A transformer highlighting persistent phase drift or undervoltage may be due to deeper stress factors within the network. With Grid, transformer monitoring becomes interpreting voltage signals along a wider set of operational indicators. This approach enables utilities to identify serious issues that require early-stage resolution.

To achieve that goal, Grid correlates voltage data with a range of transformer stress determinants.

Loading & thermal stress

• Peak loading (% of nameplate): The platform highlights if any transformer is reaching or exceeding its rated loading capacity.


• Time above nameplate: Users can see the number of hours in a day where loading was beyond 100%.


• Load factor: Grid highlights how sharply load swings occur throughout the day and reveals thermal cycling patterns.

Power quality contributors

• Voltage imbalance: A main cause of heating that isn't needed, even when the load is low.
• Phase current imbalance (when feeder or IoT data is available): This helps find problems with uneven phase loading.

Indicators of health and life consumption

• Daily Health Index: A combined signal that shows loading, voltage stress, age, and the state of the environment.
• Additional Loss-of-Life (ALoL): This metric measures the extra life lost because of operational stress that goes beyond normal duty.
• Cumulative ALoL (MTD/YTD:) Highlights total wear and tear and helps find assets that are likely to fail before their time.

Ancillary contributors that amplify voltage-related stress

Power Factor (PF): Bad or high PF raises the current for the same kW, which heats up conductors and transformers.

Harmonics (THD): THD (Total Harmonic Distortion) helps find waveform distortions that raise heating when sensors are present.

Thermal cycles: The number of times the insulation heats up and cools down, which speeds up its wear.

Hotspot or top-oil temperature (if sensors are present): Shows how voltage-driven loading patterns change the temperatures inside.

Each of these indicators tells part of the story, but when brought together they indicate how well a transformer is functioning. Insights from Grid help identify which voltage changes are safe and which ones are early signs of transformer damage.

What Voltage KPIs Does Grid Track and Why Do They Matter?

Voltage quality shapes how efficiently a transformer operates, how quickly it consumes life hours, and how often it triggers service interruptions. Grid’s transformer monitoring system evaluates a set of voltage-centric KPIs to help utilities pinpoint the earliest signs of risk.

These KPIs are not abstract metrics, they are practical indicators that reveal how voltage conditions affect transformer performance across the network.

Voltage Imbalance (%)

What it means:
Voltage imbalance refers to the percentage difference between phase voltages related to their average. Even a small change can cause heating and make the transformer less efficient.

Why it matters:
In case of sustained or long-term imbalance, there can be issues like winding temperatures, increased losses, and insulation aging, even when the overall load looks normal.

Typical utility thresholds:

• Alert at 2–3% of sustained imbalance (defined by utility)


• Anything above this range becomes a contributor to early deterioration.


How Grid helps:

Grid checks for imbalance at each interval, compares it to loading and thermal stress, and marks units that are showing signs of repeated or long-term imbalance.

Sustained Overvoltage/ Undervoltage

Meaning:
These incidents take place when voltage persistently falls below or goes above defined thresholds.

Operational implications:

• Undervoltage results in motor stress and impacts appliance performance.
• Overvoltage leads to overheating events, which increases risk of fuse operations or consumer related disturbances.

How Grid helps:
Insights in Grid segregates transformers with repeated sags, swells, or excursions across daily or weekly windows, enabling targeted investigation.

Voltage Drift by Phase

Meaning:

Slow drift or separation of phase voltages due to seasonal variations (temperature), neutral issues, changes in feeder topology, or load differentiation across customers.

Why it matters:

Drift indicates instances of localized heating, and if not addressed early on, could ultimately lead to a failure due to an imbalance.

How Grid helps:

Grid’s real-time dashboards help visualize long-term drift trends, and contextualizes them based on load and temperature.

Voltage Data Related to Additional Loss-of-Life (ALoL)

How it works:

Grid feeds voltage patterns, like imbalance, undervoltage, and overvoltage into insulation-aging models informed by IEEE/IEC principles. These models compute how much additional life is consumed due to voltage stress.

Why it matters:

Even small amounts of voltage variation compounded every day add up and equate to actual loss-of-life. Utilities must have a quantifiable way to justify decisions to maintain or right-size equipment.

How Grid helps:

Grid allows teams to prioritize transformers that show the highest voltage impact related to loss-of-life, so repairs/replacements can take place, before it translates into outages.

Tracking and interpreting voltage signals is only the beginning. Real value emerges only when these KPIs are operationalized via intelligent transformer monitoring workflows.

Real-World Case Study: Field Pilot (8,000 Transformers)

Grid's transformer monitoring capabilities were tested through a large-scale field pilot with a large distribution utility. The utility provided four months of daily AMI/MDM and asset data for approximately 8,000 distribution transformers.

What Grid Did

1. Normalized asset master data

Grid normalized transformer attributes (rating, install year, cooling class, location, feeder/DT mapping) to ensure consistency in benchmarking across the asset fleet.

2. Generated daily loading, thermal, and loss-of-life models

Grid calculated daily loading and thermal data, as well as Additional Loss-of-Life (ALoL) hours, based on its insulation aging model developed from the IEEE as well as empirical stress patterns.

3. Sorted Transformers by risk

Grid established a ranked list of units based on their ALoL and their Health Index and established an ordered repair queue based on operational stress.

4. Issued work orders

The work orders addressed phase re-balancing, tightening connections, cooling verification and right-sizing wherever warranted.

Results:

• Crew focus always shifted to the worst performing transformers that were registering the highest ALoL.
• More than thousands of transformer-life hours were saved with overload and imbalance events addressed early on.
• Grid's dashboards provided a clear before/after view of the work completed, allowing operations teams and leadership to fully understand improvement and effectiveness of corrective action.

Why is Agentic AI The Future of Transformer Voltage Monitoring?

As utilities continue to advance in digital maturity, transformer voltage monitoring is transitioning from a manual, episodic process to a more proactive and automated approach. The next transformation of the process involves leveraging policy-guided AI, to monitor and assess the status of transformers under human oversight.

Daily Autonomous Health Assessments

These agents perform scheduled health assessments monitoring ALoL, Health Index, time-above-nameplate, THD levels, etc, to generate prioritized lists of transformers that require attention.

Outputs are segmented based on role:

• Field teams are provided units that require a quick fix
• Planners can then view units that are candidates for re-phasing or resizing
• Leadership can view trends that are correlated against risk exposure and planned capex exposure.

Grid Agentic AI in Action

Grid’s Agentic AI, takes these insightful insights even further by operationalizing the insights.

• The AI can generate a work order automatically, recommend remedies for re-balancing, tightening connections, cooling checks, or right-sizing.
• Safety steps, parts lists, and SLA due dates are attached by default., and due dates by Service Level Agreement.
• Grid’s AI also conducts post-work verification checks like voltage stabilization and ALoL reduction to confirm improvement.
• The system also adapts continuously, fine tuning itself based on climate, seasonality, feeder topology, or event calendars.

When utilities look forward, Grid’s Agentic AI creates a path towards proactive and data-driven transformer management. Such approaches empower utility teams and leadership to minimize risk, maximize asset life, and function with greater confidence.

If your utility is investigating advanced voltage monitoring, or wants to begin with a data only assessment, Grid is there to support you at every step.

‍
